PA300 Access Point
PA300 Access Point
PA300 Access Point
PA300 Access Point
PA300 Access Point
PA300 Access Point

PA300 Access Point

Plasma-Cloud

Create an account or log in to view prices and place orders.

Log in Create an account

  • 2.4 GHz 802.11n WiFi
  • Zero config, plug-and-play networking
  • Free cloud-based web console for complete management
  • Water and dust resistant with an IP55 rating

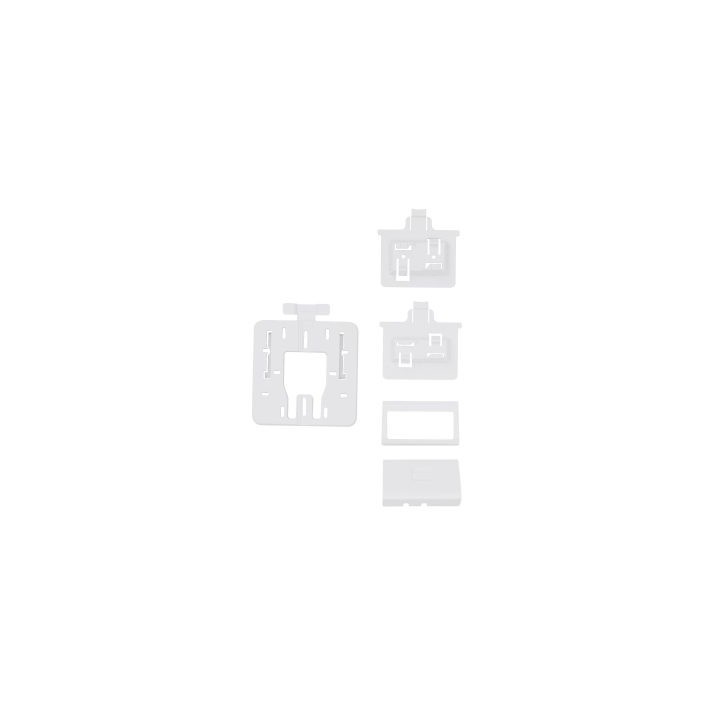

  • Universal installation kit included

  • Brand
  • Reference
    PA300

  • Processor
    Qualcomm Honeybee QCA9531
  • Usage (Indoor/Outdoor)
    Indoor & Outdoor
  • Radio Chains / Streams
    2.4 GHz : 2x2 | 5 GHz : 2x2 + 2x2
  • Freqency bands
    Single Band Radio (2.4GHz)
  • Flash Memory
    64 MB
  • Physical interface
    2 x 100 Mbps Ethernet ports
  • Max number of users
    50 per AP
  • Data Rates
    300 Mbps
  • 2.4 GHz
    2 stream, 802.11 b/g/n (max rate: 300 Mbps)
  • Antenna gain
    2.4 GHz : 3.0 dBi
  • PoE
    802.3af
    802.3at
    Passive 24V
  • DC Jack
    12-24V / 1A
  • Dimension (W x D x H)
    142 x 142 x 34 mm
  • Operating Temperature
    0°C ~ 40°C (32°F ~ 104°F)
  • Certifications
    CE, FCC, IC, RCM
  • Brand
    Plasma-Cloud
  • Number of radios
    1
  • WiFi Bands
    2.4 GHz
  • WiFi-standard
    WiFi 4
  • Antenna type
    Internal

Datasheet-PA300-Access-Point

Download (1.47MB)

Quick Start Guide - PA300

Download (7.92MB)
