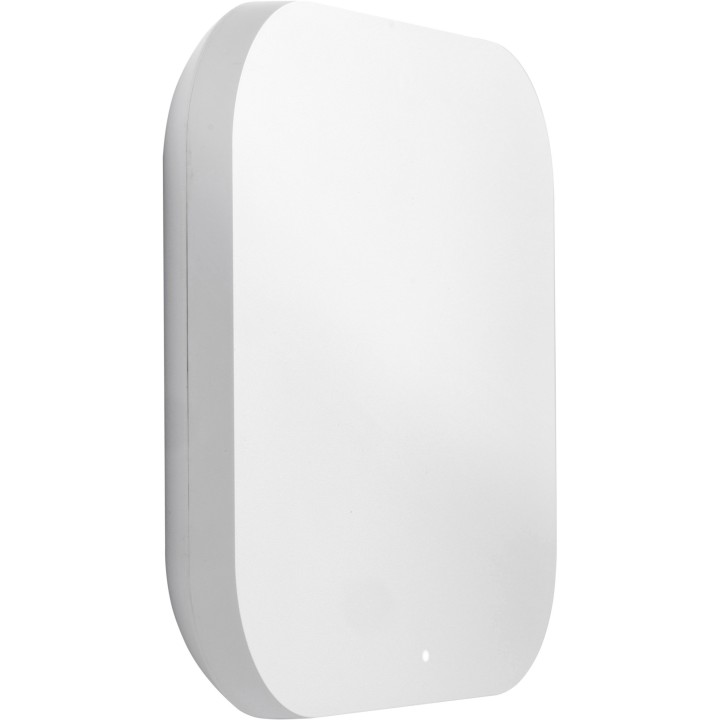

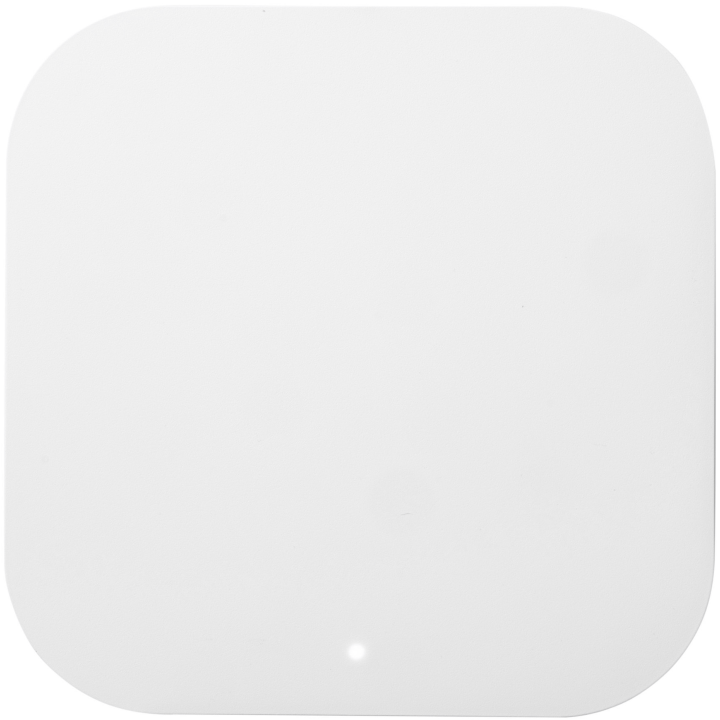

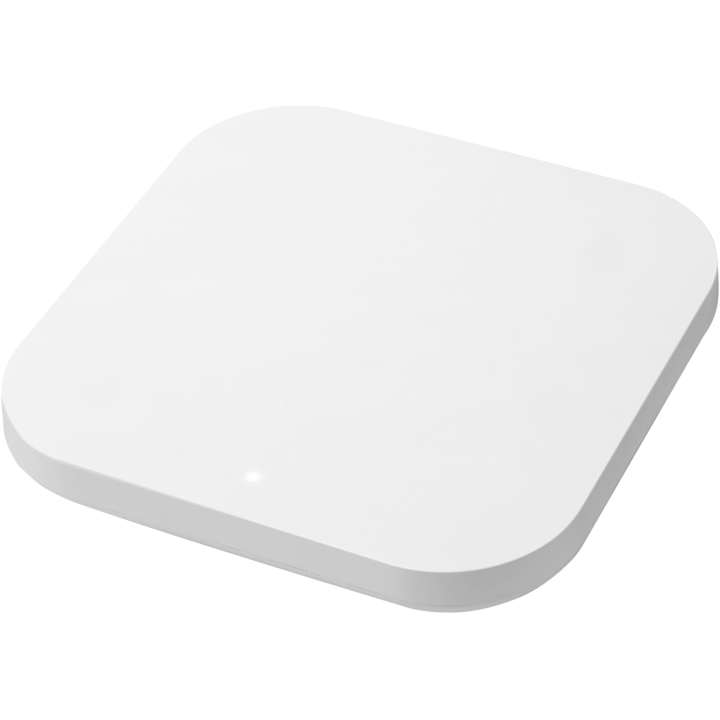

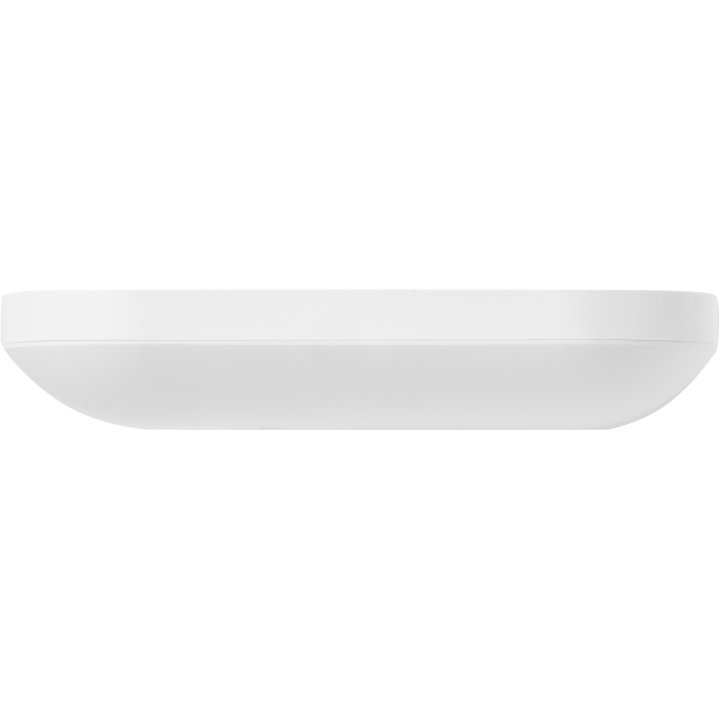

PAX5400

Triband wifi 6 accesspoint (1 x 2.4Ghz / 1 x 5Ghz / 1 x 6GHz) for indoor and outdoor.

Create an account or log in to view prices and place orders.

Log in Create an account

  • Triband (802.11ax)

  • 2.4 GHz

  • 5 GHz

  • 6 GHz

  • WiFi 6/E

  • Three internal antennas

  • Plug-and-play networking

  • Free cloud management console

  • Water and dust resistant (IP55)

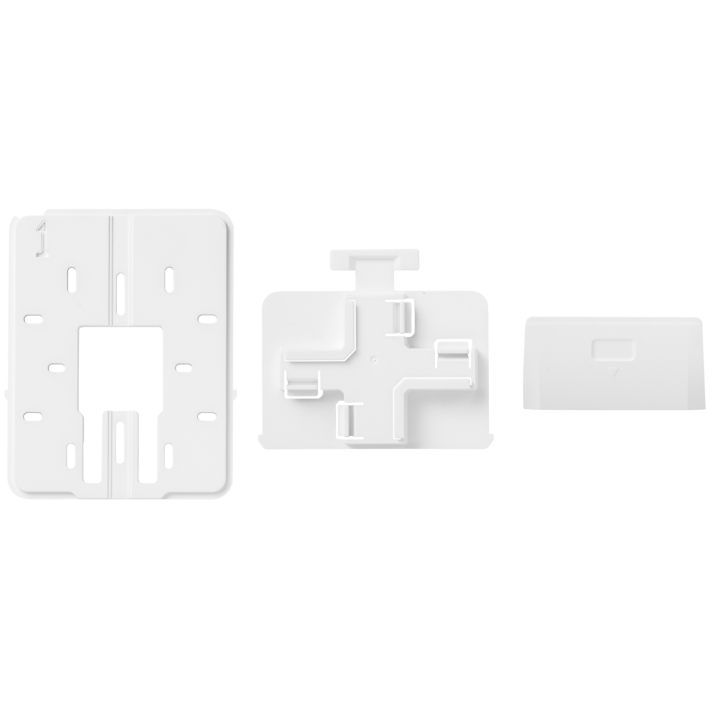

  • Universal installation kit included

  • White label

  • Brand
  • Reference
    PAX5400
  • MPN
    PAX5400

  • Processor
    Qualcomm Maple IPQ5018
  • Usage (Indoor/Outdoor)
    Indoor & Outdoor
  • Radio Chains / Streams
    2.4 GHz : 2x2 | 5 GHz : 2x2 | 6 GHz : 2x2
  • Flash Memory
    1024 MB DRAM DDR3 | 64 MB NOR Flash

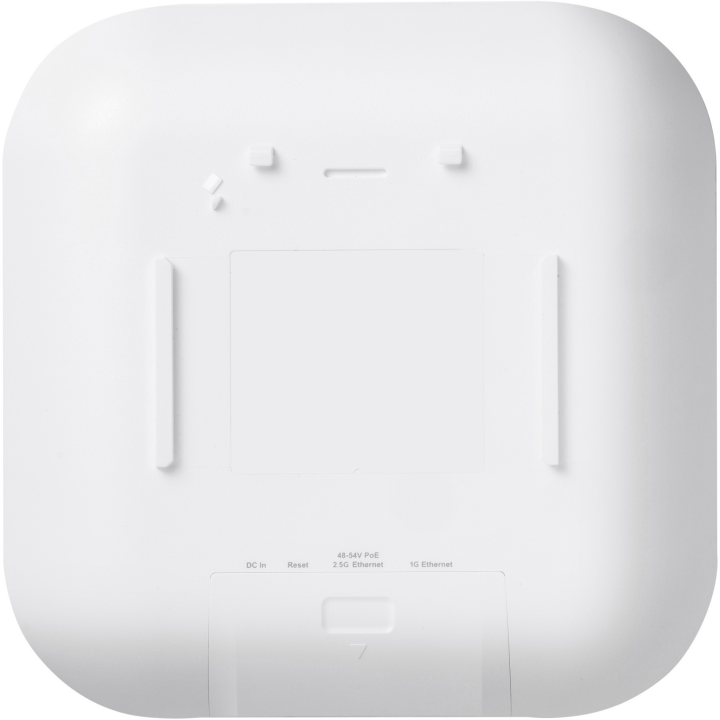

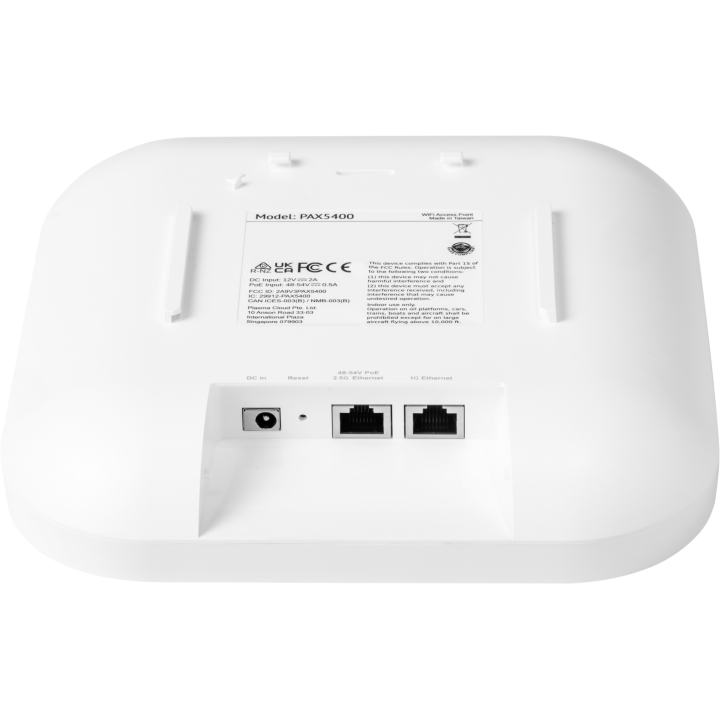

  • Physical interface
    1x 2.5 Gbps Ethernet port | 1x 1.0 Gbps Ethernet port
  • Max number of users
    300 per AP
  • Data Rates
    573 Mbps + 2402 Mbps + 2402 Mbps
  • 2.4 GHz
    2 stream, 802.11 b/g/n/ax (max rate: 574 Mbps), MU-MIMO/OFDMA
  • 5 GHz
    2 stream, 802.11 a/n/ac/ax (max rate: 2402 Mbps), MU-MIMO/OFDMA
  • Antenna gain
    2.4 GHz : 5.0 dBi | 5 GHz : 5.0 dBi | 6 GHz : 5.0 dBi
  • PoE
    802.3at
  • DC Jack
    12V / 2A
  • Power Consumption
    Min : 5W (PoE) | 3.5W (DC) | Max : 27W
  • Dimension (W x D x H)
    200 x 200 x 38 mm
  • Weight
    760 g
  • Operating Temperature
    0°C ~ 40°C (32°F ~ 104°F)
  • Certifications
    CE, FCC, IC, RCM
  • 6 GHz
    2 stream, 802.11 a/n/ac/ax (max rate: 2402 Mbps), MU-MIMO/OFDMA
  • Hardware watchdog
    Yes
  • Brand
    Plasma-Cloud
  • Number of radios
    3
  • WiFi Bands
    2.4 + 5 + 6 GHz
  • WiFi-standard
    WiFi 6/E
  • Antenna type
    Internal
